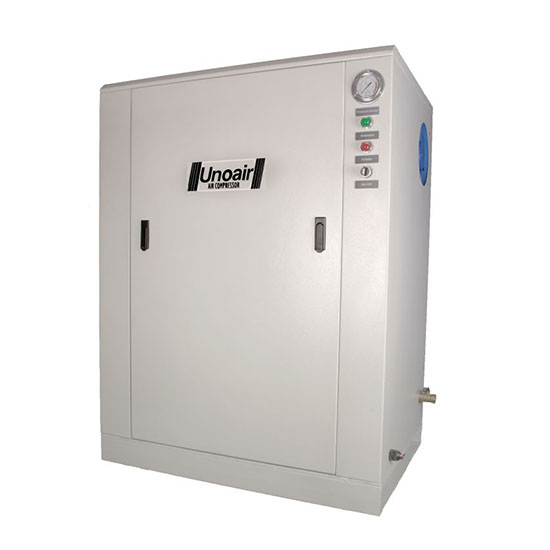

SILENT BELT DRIVEN AIR COMPRESSORS
- LOW NOISE DURING THE OPERATION
- SIMPLE OPERATION
- AUTO/MANUAL INTERNAL ADJUSTMENTS
- SIMPLE OPERATION
- AUTO/MANUAL INTERNAL ADJUSTMENTS
| Model | Motor | Tank | No.of Cyl. | Air Delivery | Max Pressure | N.W | Packing（LxWxH） | |||||
| HP | kW | L | GAL | L/min | CFM | PSI | Bar | kg | Lbs | mm | ||
| CS-20F | 2 | 1.5 | / | / | V2 | 240 | 8.5 | 115 | 8 | 126 | 277 | 750*690*1025 |
| CS-30F | 3.0 | 2.2 | / | / | V2 | 305 | 10.8 | 115 | 8 | 223 | 490 | 750*690*1025 |
| CS-55F | 5.5 | 4.0 | / | / | V2 | 650 | 23 | 115 | 8 | 255 | 561 | 870*780*1285 |
| CS-75F | 7.5 | 5.5 | / | / | W3 | 765 | 34.9 | 115 | 8 | 346 | 761 | 1050*930*1395 |
| CS-100F | 10 | 7.5 | / | / | W3 | 970 | 34.2 | 115 | 8 | 368 | 810 | 1050*930*1395 |
| CS-10 | 1.0 | 0.75 | / | / | V2 | 140 | 4.9 | 115 | 8 | 121 | 266 | 750*690*1025 |
| CS-20 | 2.0 | 1.5 | / | / | V2 | 170 | 6 | 115 | 8 | 126 | 277 | 750*690*1025 |
| CS-30 | 3.0 | 2.2 | / | / | V2 | 275 | 9.7 | 115 | 8 | 223 | 490 | 750*690*1025 |
| CS-40 | 4 | 3 | / | / | V2 | 482 | 17 | 115 | 8 | 245 | 539 | 870*780*1285 |
| CS-55 | 5.5 | 4.0 | / | / | W3 | 725 | 25.5 | 115 | 8 | 255 | 561 | 870*780*1285 |
| CS-75 | 7.5 | 5.5 | / | / | V2 | 1045 | 36.9 | 115 | 8 | 346 | 761 | 1050*930*1395 |
| CS-100 | 10 | 7.5 | / | / | W3 | 1480 | 52.3 | 115 | 8 | 368 | 810 | 1050*930*1395 |
